Components

io offers exactly the components you register. Each one is its own package, named after its method: io.select.table() comes from @awaitio/select-table. Install the ones you use, or write your own, and register them in components when you create the app:

app.ts

import { inputText } from '@awaitio/input-text';

export const app = new AwaitIO({
  // name, actionsDirectory, theme, secret, users…
  components: {
    input: {
      text: inputText,
    },
  },
});

Available components

Each card is one package and opens its page: all its props, what it returns and how the server checks the answer.

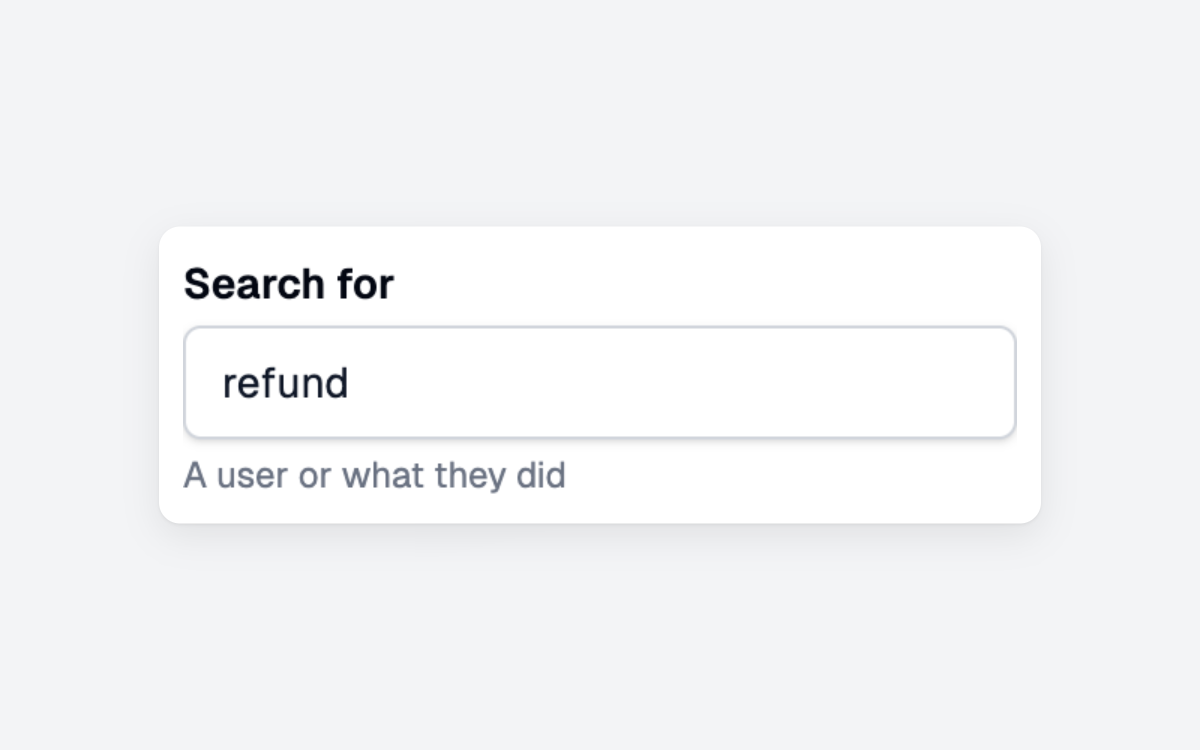

Input Text

io.input.text() asks for one line of text and returns a string.

The key is the name

The path of keys to a component becomes its method on io: input: { text: inputText } gives io.input.text(). Nothing in the component decides its name, so the same component can sit under any key, and the tree can be as deep or as flat as you like:

components: {
  text: inputText, // io.text()
  forms: { long: inputTextarea }, // io.forms.long()
}

The same path, joined with dots (input.text), is the component’s type: the server and the UI use it to tell components apart.

group and layout are reserved for io.group() and the layouts of pages. Neither can be a top-level key; the app refuses to start with them.

Typed `io`

Actions get io typed from this tree. Create actions with app.action() on the same instance, and every method, its props and what it returns are checked:

actions/accounts/createAccount.ts

import { app } from '../../app';

export const createAccount = app.action({
  name: 'Create account',
  handler: async (io) => {
    const company = await io.input.text('Company name', { placeholder: 'Acme Inc.' }); // string

    return `${company} has an account.`;
  },
});

A method of a component that is not registered does not exist on io, and a wrong prop is a type error. The server checks the props and every answer again, so nothing from the browser gets past them.

Keep new AwaitIO() in its own file (app.ts) and import the instance in action files. Creating it in the file that calls listen() would make every action import that file back.

Write your own

A component is one .tsx file: zod schemas for its props and its answer, a check the server runs, and the React control. This is the star rating from the demo app:

components/rating/src/rating.tsx

import { defineComponent } from 'awaitio';
import { z } from 'zod';

export const rating = defineComponent({
  props: z.object({ max: z.number().int().min(2).max(10).default(5) }),
  returns: z.number().int(),
  initialValue: () => {
    return 0;
  },
  // Runs on the server, so the browser cannot skip it.
  validate: ({ label, value }) => {
    return value < 1 ? `${label}: pick at least one star.` : null;
  },
  component: ({ props, value, onChange }) => {
    return (
      <div role="radiogroup">
        {Array.from({ length: props.max }, (_, index) => {
          return (
            <button key={index} type="button" onClick={() => onChange(index + 1)}>
              {index < value ? '★' : '☆'}
            </button>
          );
        })}
      </div>
    );
  },
});

defineComponent() takes:

Option	Type	Required	Description
`props`	zod schema	Required	The props after the label, checked on the server.
`returns`	zod schema	Required	The answer. May transform it, e.g. into a `DateTime`.
`component`	React component	Required	The control. Gets the props below.
`validate`	function	Optional	Server check of the answer: a message or `null`.
`initialValue`	function	Optional	The starting value. Runs in the browser too.
`wrap`	`boolean`	Optional	`false` leaves out the label, the help text and the error: you draw the whole field.

component gets:

Prop	Type	Description
`label`	`string`	The first argument of the io call.
`props`	object	The parsed props, with defaults filled in.
`value`	answer	The current answer.
`onChange`	`(value) => void`	Call it with the new answer.
`disabled`	`boolean`	`true` while the answer is being sent.
`autoFocus`	`boolean`	`true` for the first field of a step.
`error`	`string \| null`	What the server found wrong.

validate runs only on the server, so the browser cannot skip it. component draws only the control; AwaitIO adds the label, the help text and the error around it, unless the component is unwrapped. The browser half is built into the package with the Vite config from awaitio/vite:

components/rating/vite.config.mts

import { componentBuildConfig } from 'awaitio/vite';
import { defineConfig } from 'vite';

export default defineConfig(componentBuildConfig({ root: import.meta.url, entry: 'src/rating.tsx', exportName: 'rating' }));

app.ts

components: {
  input: {
    text: inputText,
    rating, // io.input.rating('How did the call go?', { max: 5 }) returns a number
  },
}

A star rating with four of five stars selected, above a text area

Register your component under a key that already exists, input: { text: myText }, and it replaces the built-in one in every action, as long as its props and its answer fit.

Building blocks

awaitio/ui has the pieces the built-in components are made of. They have no look of their own: each one draws the block of the theme your app was created with, the theme in new AwaitIO(). A component built from them looks like the rest of the app, changes with the theme and needs no CSS.

Block	Draws
`Input`	A one-line text field. `value` and `onChange` work with a `string`.
`Textarea`	A text field over several lines.
`Select`	A drop-down for one of many `choices`.
`ChoiceList`	Choices as cards, `mode: 'single'` or `'multiple'`.
`Button`	A button, `variant: 'primary'` or `'secondary'`.
`Field`	Label, control, help text and error of one field, in an unwrapped component.
`Label`	The label of a field, in an unwrapped component.
`Hint`	Small text under a control.

Unwrapped components

By default AwaitIO puts your control into a Field: the label above it, the help text and the server’s error under it. With wrap: false the component is unwrapped: none of that is added, and it lays out the whole field itself from the label and error it gets. Use it when the label or the error belong somewhere else, or when the field needs more than one control. This is the rating unwrapped, drawn with Field and Hint from awaitio/ui, with the score under the stars:

components/rating/src/rating.tsx

import { defineComponent } from 'awaitio';
import { Field, Hint } from 'awaitio/ui';
import { z } from 'zod';

export const rating = defineComponent({
  props: z.object({ max: z.number().int().min(2).max(10).default(5) }),
  returns: z.number().int(),
  initialValue: () => {
    return 0;
  },
  validate: ({ label, value }) => {
    return value < 1 ? `${label}: pick at least one star.` : null;
  },
  // The whole field is yours: label, the stars, a hint with the score and the error from the server.
  wrap: false,
  component: ({ label, props, value, onChange, error }) => {
    return (
      <Field label={label} error={error}>
        <div role="radiogroup">
          {Array.from({ length: props.max }, (_, index) => {
            return (
              <button key={index} type="button" onClick={() => onChange(index + 1)}>
                {index < value ? '★' : '☆'}
              </button>
            );
          })}
        </div>
        <Hint>
          {value} of {props.max} stars
        </Hint>
      </Field>
    );
  },
});
